Working at height poses a series of unique risks to the workplace. Height safety requires more than just protecting workers from the risks of working at height. Objects dropped from height can result in personal injury to workers and others at a worksite, as well as equipment damage and tool loss, yet these hazards are often overlooked in planning for workplace safety. Remember, fall protection is about you; dropped object prevention is about those around you.

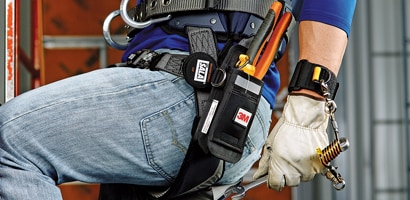

Image of workers belt with a variety of tools secured in holsters and with connectors attached to anchor points
How do I provide fall protection for tools?

Dropped object hazards

Identifying a dropped object hazard can be as simple as noticing a small tool or pile of screws laying near an at-height edge—any of which could be accidentally kicked or blown by the wind, falling to a lower level. However, hazards are oftentimes less obvious, such as tools precariously stored in pockets, pouches or bags with insecure enclosures. There are two primary types of falling object incidents: direct impact and deflections.

Download the fall protection for tools infographic (JPEG, 1.9 MB)

  • Adjustable wrench deeply embedded in hard hat after falling from height
    Direct impact

    Depending on the weight and shape of the tool or object that is dropped, the forces of a direct impact can reach fatal levels—even when a hard hat is worn. Using the chart available for download below, note the speed and impact force that can be generated when dropping a 3.6 kg wrench from heights. To visualise the effect of this on a hard hat-wearing worker, watch the video. The hard hat—which is not typically designed for such high impact—is unable to withstand the blow.

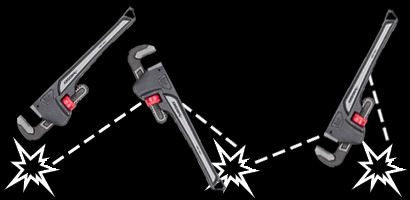

  • Illustration of pipe wrench deflecting horizontally

    Dropped objects that deflect off of a surface can pose just as great a risk to workers as objects that do not bounce or deflect. That’s because, while designated “Drop Zones” may keep workers and others outside of a designated at-height work area, tools like the 3.6 kg wrench referenced in the illustration download below could theoretically deflect and travel horizontally for hundreds of feet. It’s unlikely that distance would be accounted for by a “Drop Zone” barricade, so potential victims would be unsuspecting and unprepared.

Image of worker wearing fall protection gear atop a tall structure carrying a long piece of lumber
The Hierarchy of Dropped Object Prevention is:
  1. Hazard elimination or substitution
  2. Passive systems: Guardrails with toe boards and mesh netting, screens, floor/ hole coverings, tool canopies with side protection
  3. Tool restraint: Transport buckets with closure systems, tool holsters, tool pouches
  4. Tool arrest: On/off-the-body anchoring solutions
  5. Administrative controls: Dropped object zones: barricading off the area below

Dropped Object Prevention Basics

Similar to a personal fall arrest system, which incorporates some form of anchorage, body support and connector(s), a drop prevention system should include the same type of components.

  • Image of worker holding an adjustable wrench secured to his belt by a tether
    Body support (tool attachment points)

    Attachment points function similarly to a worker’s safety harness in that it must be a secure point on the tool that is load-rated for at least the total weight of the tool. Once a tool contains an attachment point, it’s considered “tether-ready.” Types of Attachment Points;

    • Quick Spin and Quick Ring Attachment
    • D-ring Cord
    • D-ring & Quick-Wrap Tape
    • Tool Cinch Attachments

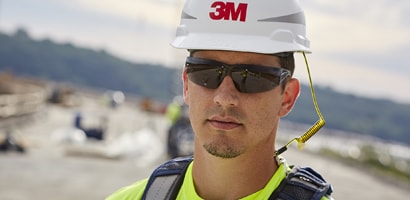

  • Image of a worker wearing a hard hat secured to his full body harness with a tether

    Just like lanyards or personal self-retracting lifelines for personnel, tools require a connector to ensure they remain securely attached to an anchorage in the event the tool is dropped. There are two common types of connectors for tools: retractors and tethers.

    • Tool Tethers
    • Hard Hat Tether
  • Image of worker wearing a wristband anchor attached to a wrench

    The final component of the 3-point system for securing tools from drops is the anchorage. A tool anchorage can take many forms because of the wide variability of sizes and weights of the most commonly used tools, but at a high-level there are two types of anchorages for tools: off the body for any tool over 2.3 kg, and on the body anchorages (only for tools under 2.3 kg.), such as;

    • Tool Belts and Belt Loops
    • Holsters
    • Wristbands

  • Attachment points

    Make it possible to tether virtually any tool in a matter of seconds without defacing or structurally modifying tools.

    Tool lanyards

    Tool lanyards and tethers are suitable to restrain almost any tool up to 36.3 kg.

    Tool pouches

    Built specifically to contain object and prevent dropped objects and are available in a number of variations.

    Tool holsters

    General and specialized belt and harness holsters designed for popular hand tools and other common worker objects.


    Compatible with many tool lanyards, making it easy to tie off tools and facilitate work while at height.

    Spill control buckets

    Engineered with a built-in closure system that helps prevent dropped tools and objects.

    Tool belts

    Compatible with a wide selection of tool belt holsters, tool lanyards, and tool pouches.

Workers on an aircraft wing performing maintenance and secured to a temporary anchor
Wondering what fall protection products go with which tools?

Download the Tool Room product selection guide, which provides information and examples of how to tie off a variety of tools.


Fall Protection for Tools Video Series

Gain an introduction to the core concepts of fall protection for tools in our free online video series.
