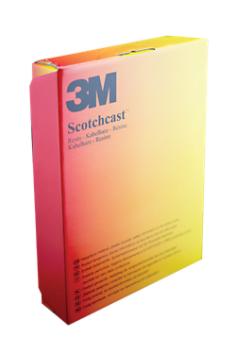

3M™ Scotchcast™ Electrical Insulating Resin 40, Size C ,370 mL, Without Nozzle, 28 ea/Case
- Part Number KE235117741
- 3M Product Number 40 Size C Without Nozzle
- 3M ID 7000035348
Details
Highlights
- Uses high quality resin compounds, offering improved reliability and durability to avoid costly re-work and system down-time
- Supplied in a two-chamber plastic pouch with a peelable barrier in the correct stoichiometric proportion, ensuring the correct mixing ratio for applying the resin
- No nozzle format is recommended for resin pressure method (RPM) applications
- Excellent hydrolytic stability
- RoHS and REACH compliant
- Single two-part bag pack
- Bag opening tool included in the package
- Various bag sizes available
3M™ Scotchcast™ Resin 40 is a two-component general-use premium polyurethane resin, curable at room temperature. It is supplied in a two-part plastic pouch bag with a removable barrier in the correct stoichiometric proportion.
3M™ Scotchcast™ Resin 40 is suitable for use as electrical insulation and mechanical protection of electrical joints for application up to 1kV. The hydrophobic polyurethane resin meets CENELEC HD631.1 S2 requirements and is compliant with EU directive 2011/65/EC (RoHS) and EU directive 1907/2006/EC (REACH), guaranteeing the highest grade of electrical insulation for professional application. Fast and clean application thanks to the new 3M patented spout integrated in the resin bag. Bag opener included in the box.
Typical Properties
Resources
Similar products
| Cure Method | Room | |
| Flexibility | Semi-flexible | |
| Material | Polyurethane |
