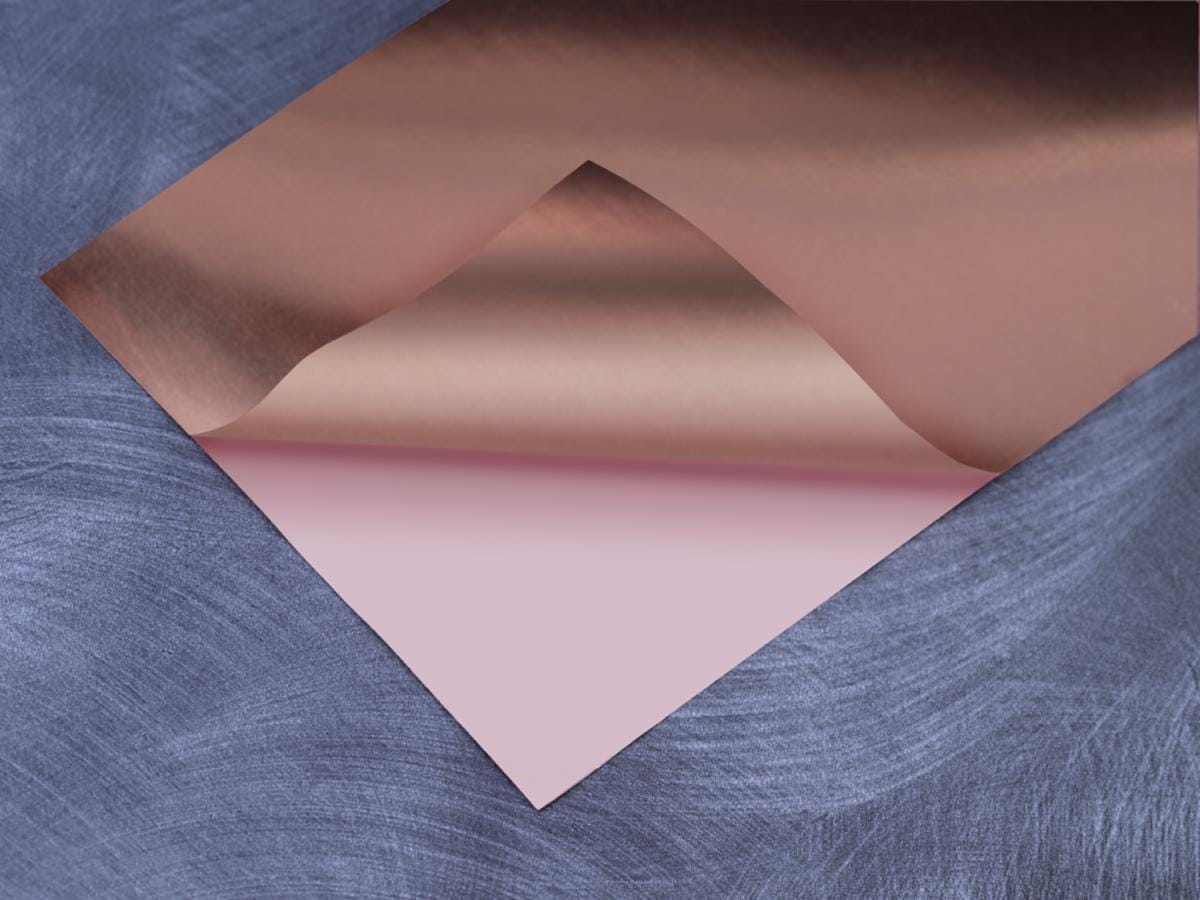

3M™ Embedded Capacitance Material C1012E, 35/35 Full, 12 in x 18 in

3M™ Embedded Capacitance Material C1012E, 35/35 Full, 12 in x 18 in

3M ID 7100285660
UPC 00638060909669

Replaces surface mount capacitors, saving valuable space in wearable devices

Can be used in high speed digital applications, providing distributed capacitance for power supply decoupling, and as low pass filters in analog applications

Simplifies board design by allowing the elimination or reduction of discrete high frequency decoupling capacitors

View more details

Details

Highlights

Replaces surface mount capacitors, saving valuable space in wearable devices
Can be used in high speed digital applications, providing distributed capacitance for power supply decoupling, and as low pass filters in analog applications
Simplifies board design by allowing the elimination or reduction of discrete high frequency decoupling capacitors
Enables significant board size reduction in MEMS applications, saving valuable space in mobile devices

3M™ Embedded Capacitance Material (ECM) is laminate of copper and epoxy with a high dielectric constant filler material intended as a layer in a printed circuit board, flex circuit, or rigid-flex circuit
